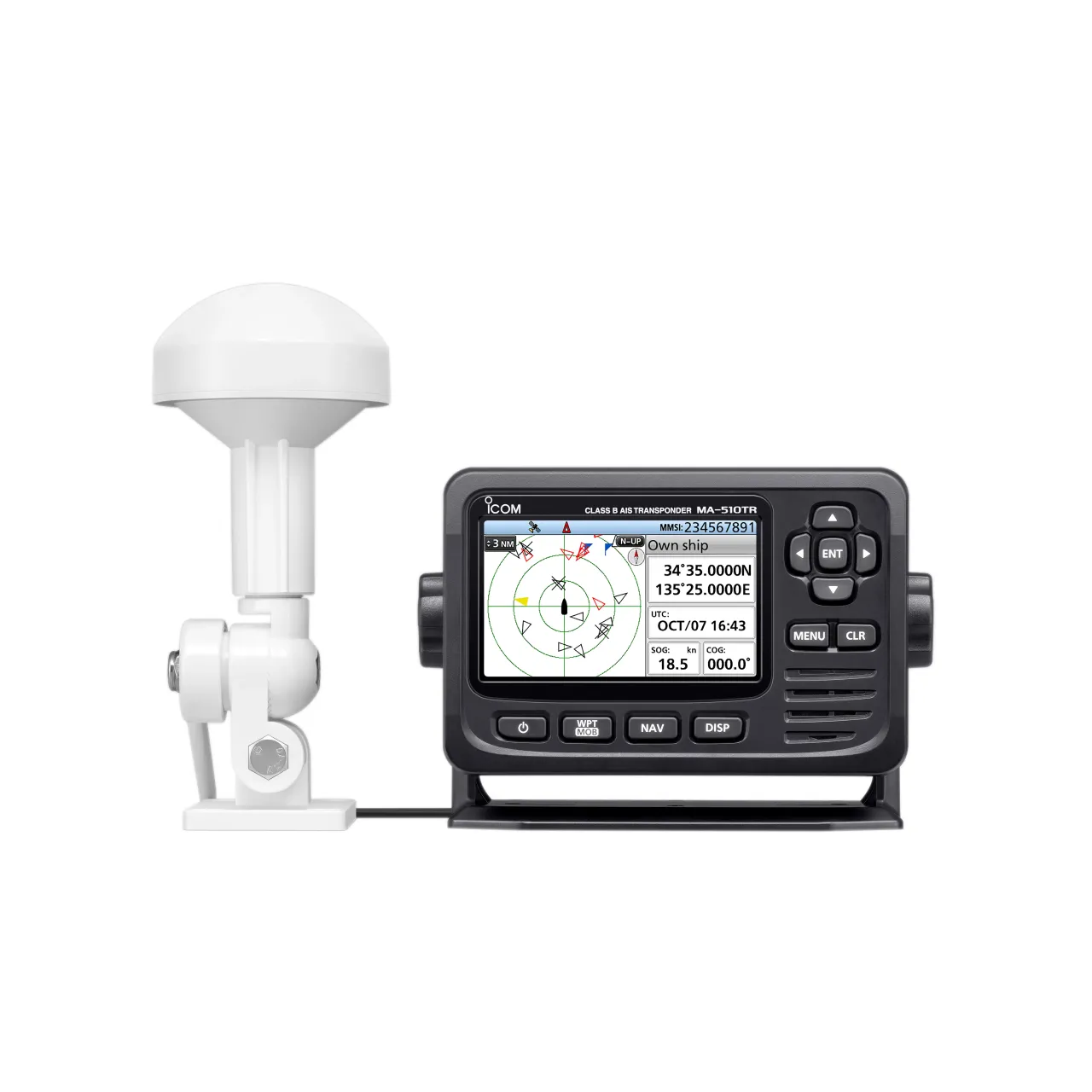

ICOM MA-510TR AIS TRANSPONDER CLASS B
Rp1.00
Merk: ICOM
Tipe: MA-510TR
Features :
- Class B AIS transponder
- Supplied GPS Antenna
- 4.3-inch Color TFT LCD
- AIS Target List and Details
- Simplified Navigation
- Navigation to MOB Waypoint
- Individual DSC Call
- USB Connectivity
- NMEA 2000, NMEA 0183/-HS Connectivity
- Collision Alarm
- Silent Mode
- IPX7(except connectors)
Specs:
Operating Frequencies :
- 161.500MHz - 162.025MHz
Type of Emission : 16K0GXW(GMSK)
Antenna Impedance : 50 nominal
IF :
- CH-A : 21.700MHz(1st), 450kH(2nd)
- CH-B : 30.150MHz(1st), 450kH(2nd)
Usable Temperature Range : 20C to +60C
Power Supply Requirement : 12V DC(9.615.6V)
Current Drain(at 12.0V DC) :
- TX: 1.5A
- RX : 0.7A
Dimensions(WHD) : 166.2110.292.5mm
Weight : 700g
Receiver(AIS) :
Sensitivity(20% error rate) : Adjacent Ch. Selectivity : >31dB
Spurious Response : >31dB
Intermodulation : >36dB
Conducted Spurious Emission :
- - >1GHz : Blocking :
- 15dBm
- >5MHz : >23dBm
Co-channel : >111dBm
Receiver(DSC) :
Frequency coverage : 156.525MHz
Type of emission : 16K0G2B
Sensitivity : Adjacent channel selectivity : >70dB
Spurious response : >34dBm
Intermodulation : > 39dBm
Blocking : >20dBm
Transmitter :
Output Power : 2W
Modulation : 16K0GXW(GMSK)
Conducted Spurious Emission :
- - >1GHz :
GPS Antenna :
Received frequency : 1575.42MHz
Acquisition : 72 ch(max)
Differential satellites : WAAS, EGNOS, MSAS, GAGAN
Dimensions approx. : 96.2225(H)mm, 3.88.9(H)inch
Weight approx : 700g, 1.5 lb(incl cable & mounting bracket)
Cable length approx : 10m, 32.8ft
