HT MOTOROLA XIR P8668I
Rp1.00

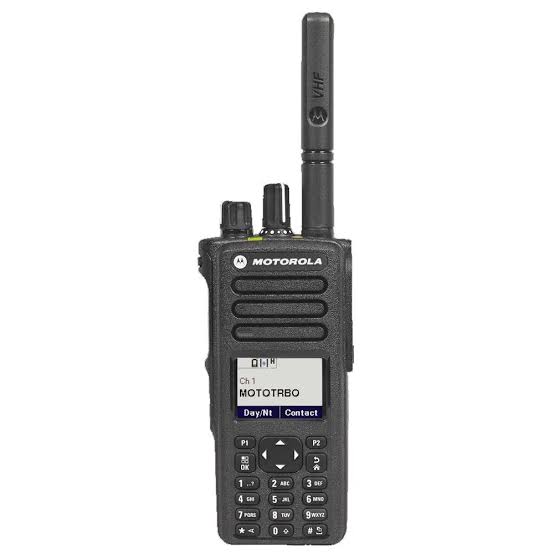

Motorola XIR P8668I
Features :
- Analog / Digital
- Voice Communications
- Dual Capacity Direct Mode
- Digital Mobile Radio (DMR) Standards
- Compliant
- Narrowbanding Compliant
- IP54 Rated
- Intelligent Audio
- Integrated Bluetooth
- Integrated GPS
- Instant Text Messaging
Specs :
Number of Channels : 1000 channel
Operating Temperature: -30 ~ +60C
Power Supply : 7.5V
Dimensions : 130.3x55.2x35.8 mm
Weight : 335.5 g
Receiver :
Channel Spacing : 12.5kHz / 25kHz
Frequency Stability : 0.5ppm
Analog Sensitivity : 0.3uV / 0.22uV(typical)
Digital Sensitivity : 0.3uV / 0.19uV(typical)
Intermodulation : -70dB
Spurious Rejection :
- (TIA603D) : -70dB
Rated Audio : 0.5W
Audio Distortion : 5%(3% typical)
Adjacent Channel Selectivity :
- (TIA603A)-1T : 60dB @ 12.5kHz, 70dB @ 25kHz
- (TIA603A)-2T : 45dB @ 12.5kHz, 70dB @ 20/25kHz
Hum and Noise : -40dB @ 12.5kHz, -45dB @ 20/25kHz
Conducted Spurious Emission (TIA603D) : -57dBm
Transmitter :
Low Power Output : 1W
High Power Output : 5W
Channel Spacing : 12.5kHz / 20kHz / 25kHz
Frequency Stability : 0.5ppm
Modulation Limiting : 2.5kHz @ 12.5kHz / 5.0kHz @ 25kHz
