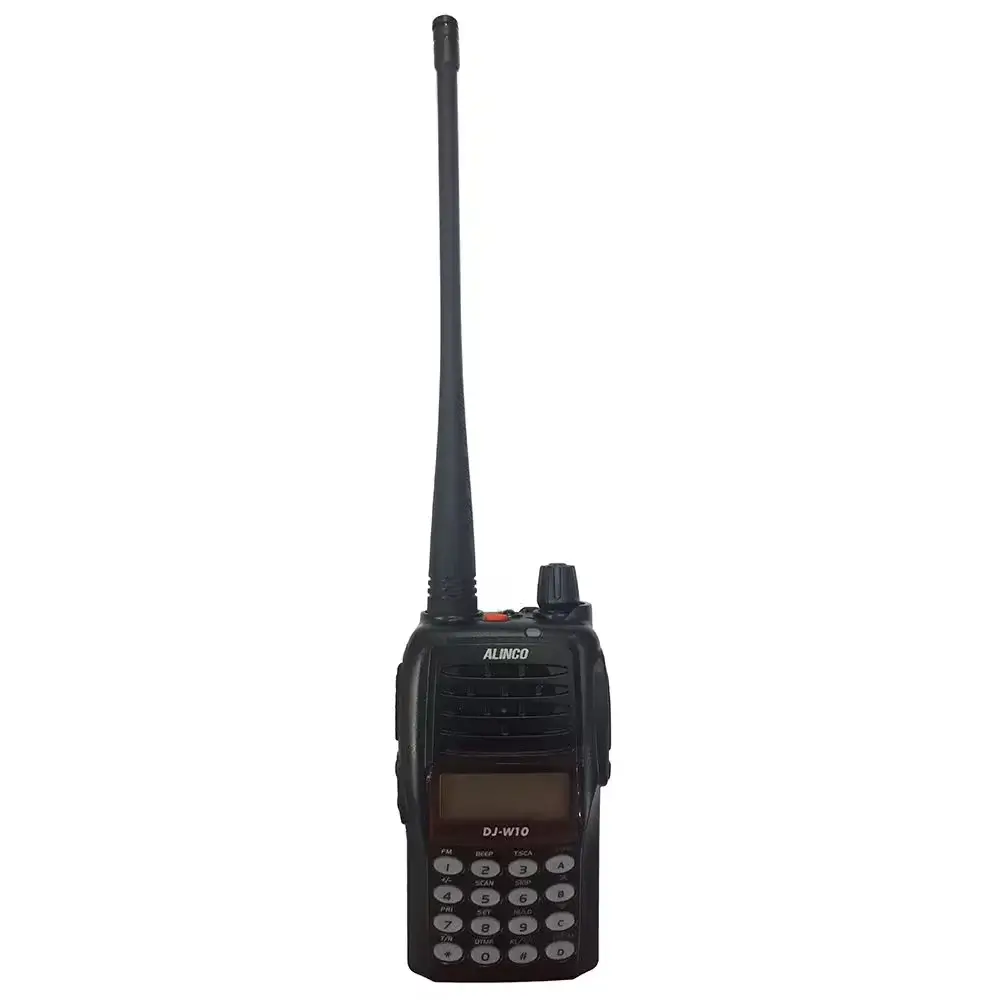

HT ALINCO DJ-W10

SPESIFIKASI :

Alinco DJ-W10 VHF 136 - 174 MHZ

SINGLEBAND

-Frequency : [TX/RX] 136.000 - 173.995 MHz

[RX Only] 76-108 MHz

- Mode : F3E (16K0F3E/11K0F3E / RX Only WFM)

- Progammable Channels : 128 Channels

- Frequency Stability : 2.5ppm

- Power Supply Requirement : 7.4V DC

- Dimensions : 59W x 98H x 35D mm

Transmitter :

- Output Power : Approx. 5/2/0.5W

- Modulation System : Variable Reactance FM

- Spurious Emissions : Less Than -36 dB

- Max Frequency Deviation : 5kHz / 2.5kHz

Receiver :

- receive System : Double Conversion Superheterodyne

- Inter Mediate Frequencies : 38.85MHz

- Sensitivity (12dB SINAD wide /Narrow)

- Selectivity : -6dB: -6dB: Wide12kHz / Narrow 10kHz

- Audio Output Power : 1000mW (8Ohm / Max)

GARANSI 1 TAHUN RESMI ALINCO
